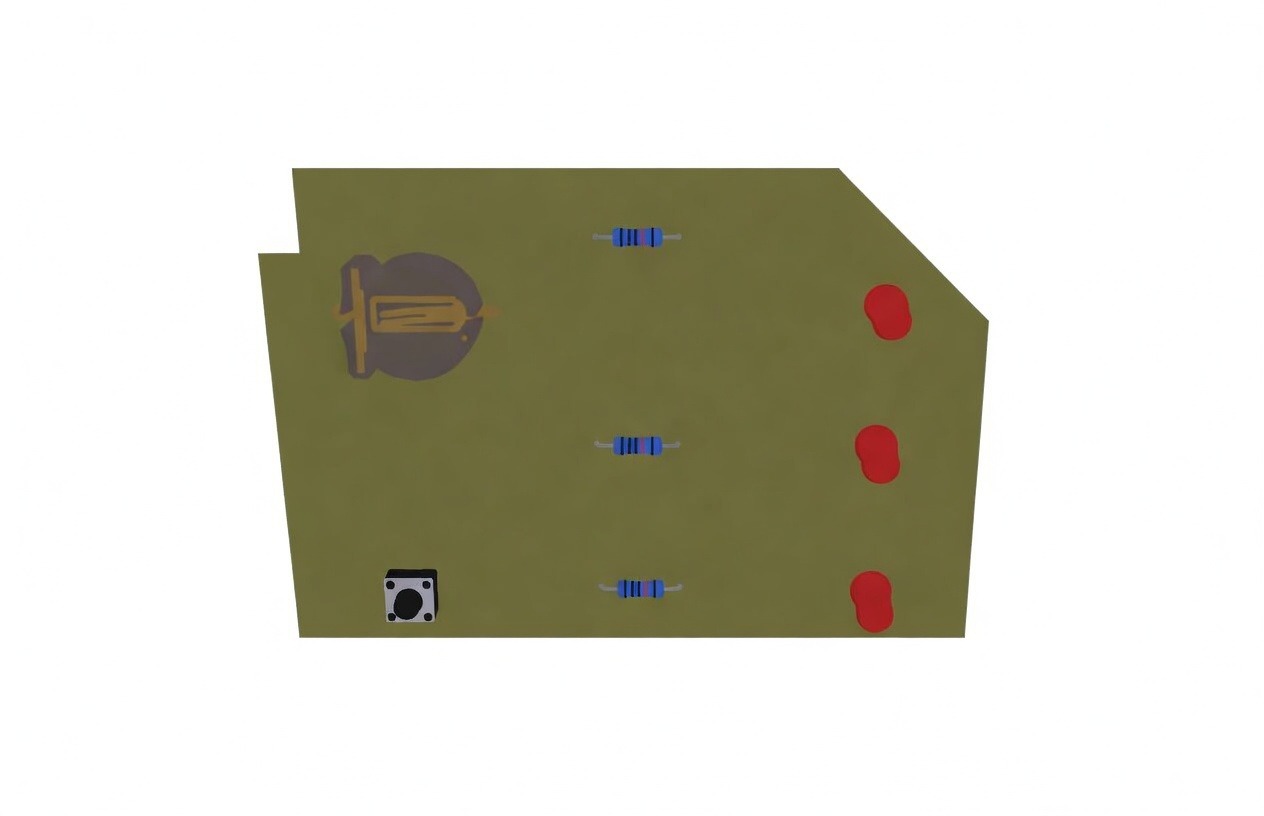

LED PCB board featuring three blue resistors, three red LED mounting pads, a black push-button switch, and a cylindrical component on the top left.
Name: LED CIRCUIT
File Size: 1.14 MB
File Extension: .rar
PCB Dimensions: 65 mm × 87 mm
Track Width: 0.3 mm
Hole Diameter: 0.5 mm
Download: LED CIRCUIT.rar
